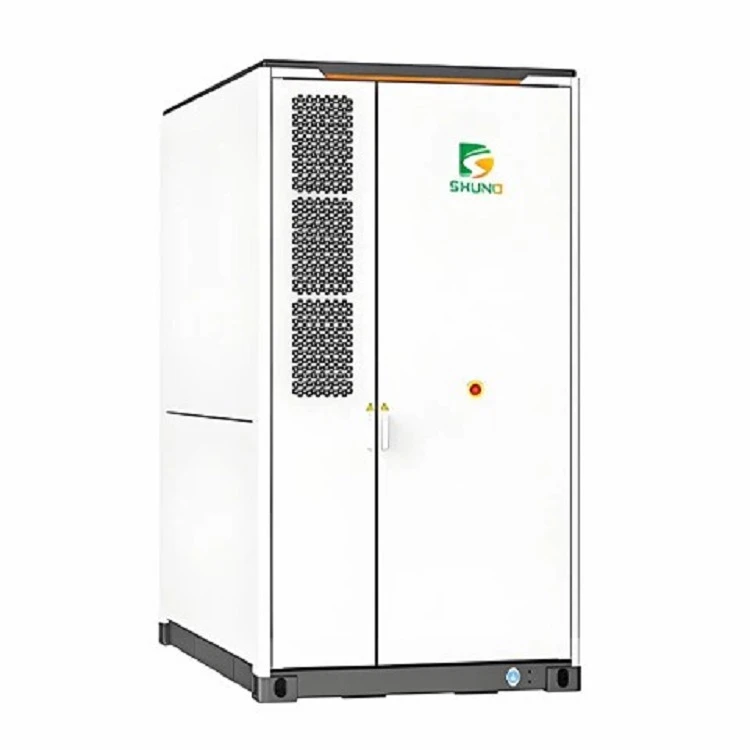

C&I Energy Storage System

Battery Cells/Modules: These are the primary components that store energy. The type of battery (e.g., lithium-ion, lead-acid, flow battery, etc.) determines its energy density, cycle life, and other performance characteristics.

Battery Management System (BMS): This is an electronic system that manages the battery pack, ensuring optimal performance and safety. It monitors and controls various parameters like voltage, current, temperature, and state of charge (SoC). The BMS also provides protection against overcharging, over-discharging, overheating, and other potentially harmful conditions.

Power Conversion System (PCS): This includes inverters and converters that change the electrical characteristics of the energy. For instance, they can convert DC (direct current) from the battery to AC (alternating current) for grid connection or vice versa.

Enclosures and Racks: These are physical structures that hold and protect the battery modules and other components. They can be designed for various installations, from small residential systems to large utility-scale deployments.

Switchgear and Protection Devices: These components ensure that the BESS can be safely connected to or isolated from the grid. They protect the system from faults and provide safe operational control.

Sensors and Monitoring Systems: These systems continuously monitor the performance and health of the BESS, providing data to the BMS and EMS for optimal operation and maintenance.

Communication Systems: These allow the BESS to interface with the grid, other energy resources, and control centers. They enable remote monitoring, control, and diagnostics.

Auxiliary Systems: These can include backup power supplies, lighting, and other support systems required for the operation and maintenance of the BESS.
